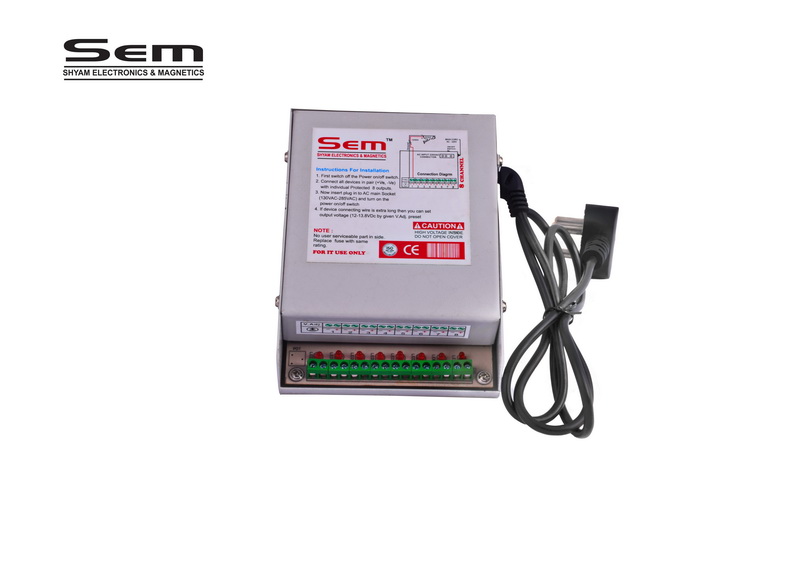

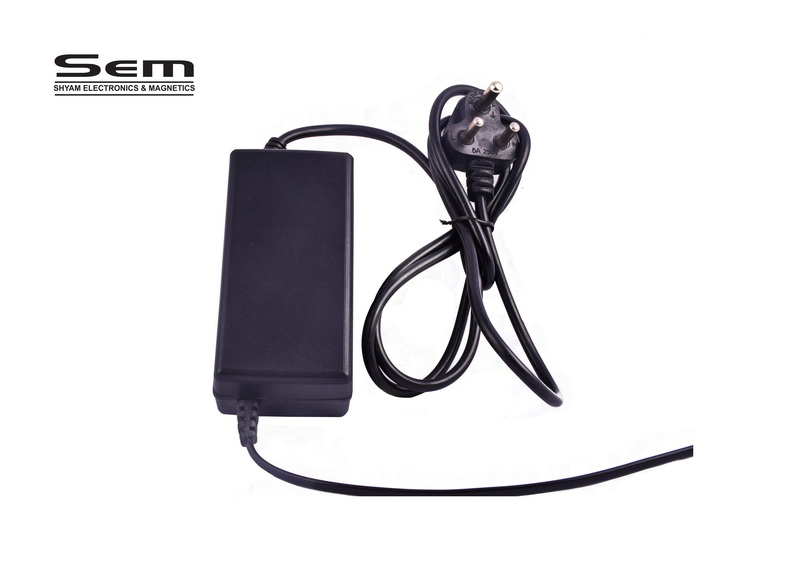

C.C.TV CAMERA POWER SUPPLY

DESCRIPTION –

THESE POWER SUPPLY ARE DESIGNED TO MEET ALL POWER REQUIREMENTS CCTV CAMERA.OUR POWER SUPPLY DESIGNS ARE BASED ON LATEST HIGH FREQUNCY SWITCHING MODE TECHNOLOGY DUE TO THAT OUR POWER SUPPLY ARE MORE EFFICIENT DURABLE, COMPACT, LIGHT WEIGHT & CAN WORK PERFECTLY IN ALL TYPE OF POWER & ENVIRONMENT CONDITIONS WORLD WIDE.

WE USE BRANDED & TESTED RAW MATERIAL.

OUR EVERY POWER SUPPLY PASS THROUGH THREE STAGE PROCESS TESTS AND BURN TEST.

Main application- C.C.TV CAMERA POWER SUPPLY

SALIENT FEATURES-

• Wide input voltage range (140VAC-280VAC)
• Very Low no load power consumption.
• Very low ripple & noise output for device safety and picture clearness.
• Protections against- under-over voltage /over load/short circuit with auto restart on fault removal.
• Thermal shut down (140*C) with auto restart on cold condition.
• Soft start & low inrush current.
• Isolation up to 2kv for 5sec.time period.
• High operating ambient temperature up to 60*C.
• Highly efficient, compact, durable and long life.
• Designed to meet safety requirement and standard EMC-EMI levels.

Models Available-12VDC/1.5A,12VDC/2.0A,12VDC/3.0A,12VDC/5A 12VDC/10A, 4 CHENNAL, 8 CHENNAL, 16 CHENNAL
