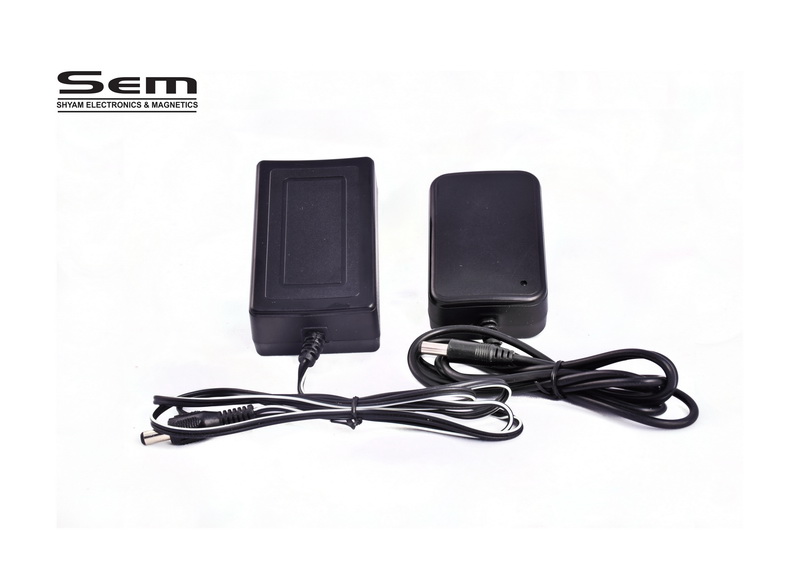

AC DC ADAPTER FOR SET TOP BOX
DESCRIPTION –
THESE ADAPTERS ARE DESIGNED TO MEET ALL TYPE OF POWER REQUIREMENT OF SET TOP BOX.
OUR ADAPTERS DESIGNS ARE BASED ON LATEST HIGH FREQUNCY SWITCHING MODE TECHNOLOGY DUE TO THAT OUR PRODUCTS ARE MORE EFFICIENT DURABLE, COMPACT, LIGHT WEIGHT & CAN WORK PERFECTLY IN ALL TYPE OF POWER & ENVIRONMENTEL CONDITIONS WORLD WIDE. WE USE BRANDED & TESTED RAW MATERIAL IN OUR ALL PRODUCTS.
OUR EVERY PRODUCT PASS THROUGH A THREE STAGE PROCESS TESTS AND BURN TEST.
Main application-
SET TOP BOX
Models Available-
5VDC/1.5A,5VDC/2.0A, 12VDC/1.0A, 12VDC/2A
SALIENT FEATURES-
• Wide input voltage range (100VAC-280VAC)
• Very Low no load power consumption.
• Very low ripple & noise output for device safety and picture clarity.
• Protections against- under-over voltage /over load/short circuit with auto restart on fault removal.
• Thermal shut down (140*C) with auto restart on cold condition.
• Soft start & low inrush current.
• Isolation up to 3kv for 5sec.time period.
• High operating ambient temperature up to 60*C.
• Highly efficient, compact, durable and long life.
• Designed to meet safety requirement and standard EMC-EMI levels.
