DC TO DC CONVERTOR
DESCRIPTION –
THESE DC –DC CONERTOR ARE DESIGNED TO PERFORM PERFECTLY IN THIS FIELD.
OUR DC -DC CONVERTER DESIGNS ARE BASED ON LATEST HIGH FREQUNCY SWITCHING MODE TECHNOLOGY DUE TO THAT OUR PRODUCTS ARE MORE EFFICIENT DURABLE, COMPACT, LIGHT WEIGHT.
WE USE BRANDED & TESTED RAW MATERIAL IN OUR ALL PRODUCTS.
OUR EVERY PRODUCT PASS THROUGH THREE STAGE PROCESS TESTS AND BURN TEST.
Main application-
IT, TELECOMUNICATION, CONTROLL & INTRUMENTATION, CCTV CAMRA.
Models Available –
48VDC TO 24VDC-1.5Amp, 48VDC TO 5VDC-2Amp
48VDC TO 12VDC-1.5AMP, 24VDC TO 12VDC-1.5AMP, -48VDC TO +18VDC/1.5A
SALIENT FEATURES-
• Wide Input dc voltage range –
• Isolated & non isolated model available
• Reverse polarity, fuse protection in input
• Protections- over voltage /over load/short circuit & auto restart on fault removal.
• Thermal shut down (140*C) & auto restart.
• Low ripple & low noise output.
• High operating ambient temperature up to 70*C.
• COMPACT & LIGHT WEIGHT
• High efficiency, durable, long life.

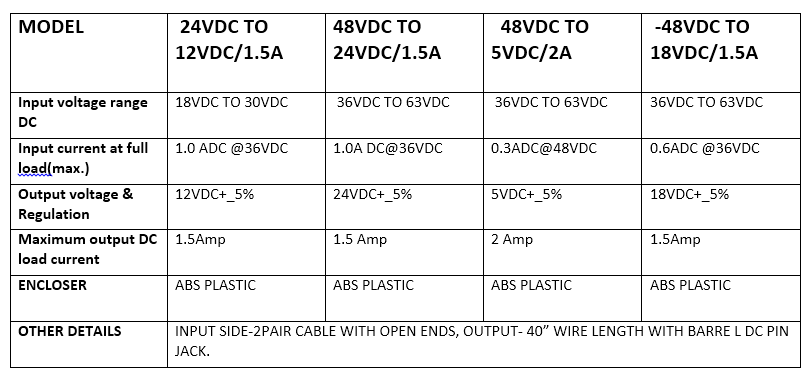

Specification
